Gecko Compact Seismograph

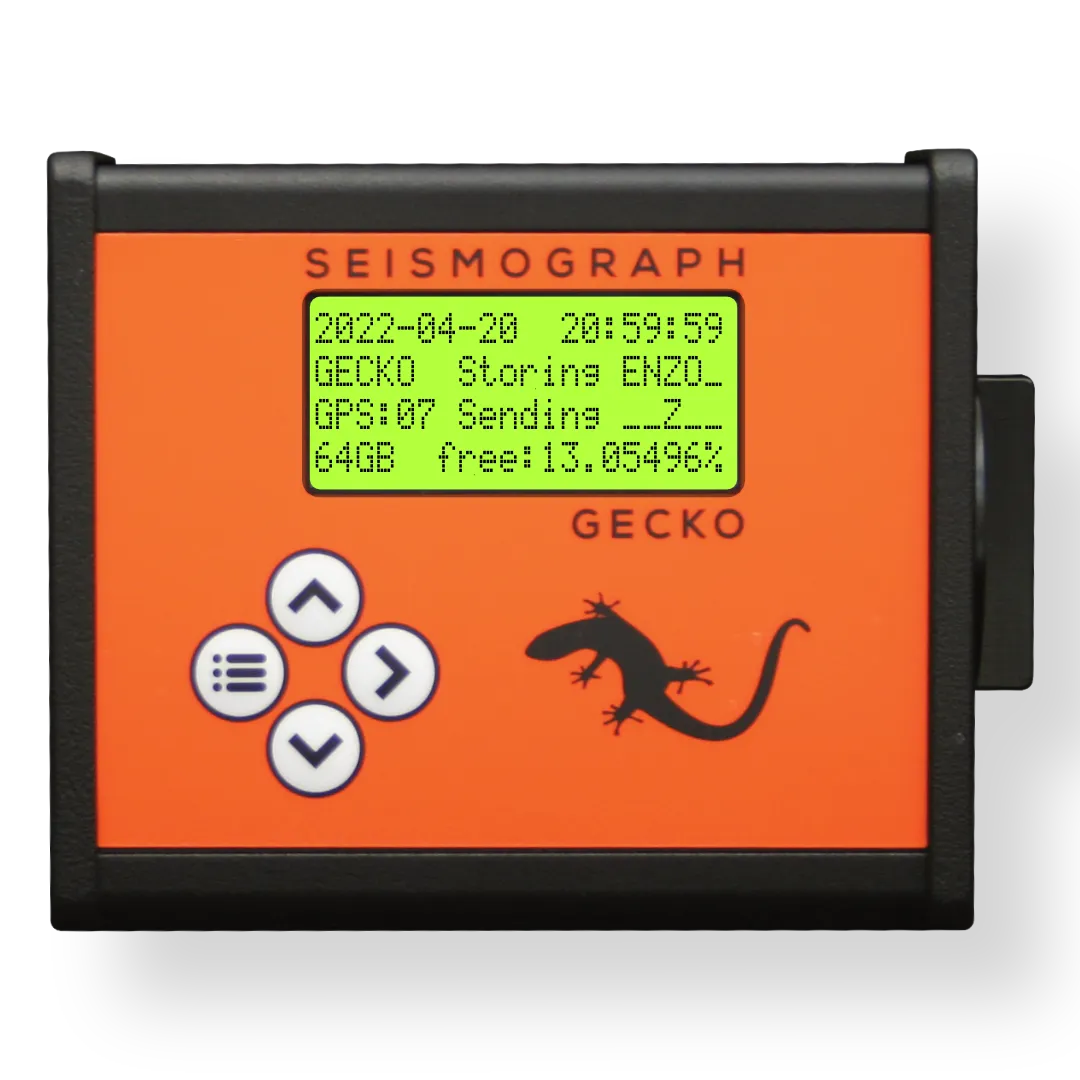

The Gecko is ESS's 7th-generation compact seismograph, continuously recording ground motion to a removable SD card, with a built-in LCD and keypad for standalone field configuration.
- Channels
- 3+1 (triaxial plus auxiliary sensor)
- Sample rate
- 50-4000 samples/second, continuous
- Dynamic range
- 32-bit ADC; ~8,000,000:1 largest-to-smallest signal ratio
Overview
In detail
How it works
The Gecko continuously digitises and stores ground-motion data using a 32-bit ADC, giving a ratio of largest to smallest recordable signal of almost 8,000,000:1. It has 3+1 channels, suited to a triaxial geophone plus an auxiliary sensor such as a microphone for vibration and blast-compliance monitoring.
Measurement
Data is captured continuously at 50 to 4000 samples per second, covering everything from long-period seismometers to geophones, microphones and accelerometers, with flat frequency response up to 1.6kHz.
Deployment
The Gecko draws under 1W with passive sensors, so it can run for over a month from a car battery or indefinitely on a small solar panel with battery backup. Full configuration is possible in the field via its LCD and keypad, without a laptop or special software. Data can also be telemetered to a remote computer over cellular modem or Ethernet.
Variants

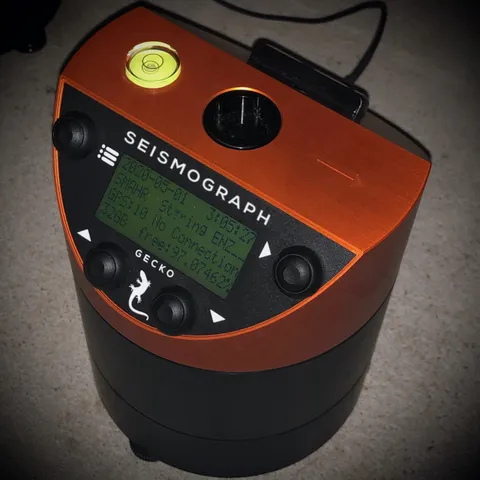

The Gecko Rugged is a waterproof version, available with internal triaxial acceleration or velocity sensors. The Gecko ERI adds an internal battery and charger, an Ethernet interface and 10A relay alarm contacts in a single wall-mountable case for structural monitoring.
Reach out and say hi
Add-ons for Gecko Compact Seismograph
OptionalSpecifications
Technical specifications
- Channels
- 3+1 (triaxial plus auxiliary sensor)
- Sample rate
- 50-4000 samples/second, continuous
- Dynamic range
- 32-bit ADC; ~8,000,000:1 largest-to-smallest signal ratio
- Frequency response
- Flat response up to 1.6 kHz
- Power consumption
- <1W with passive sensors
- Connectivity
- Removable SD card; cellular modem or Ethernet telemetry
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the Gecko Compact Seismograph — no login, no paywall.
Related
Often specified alongside
ESS Earth

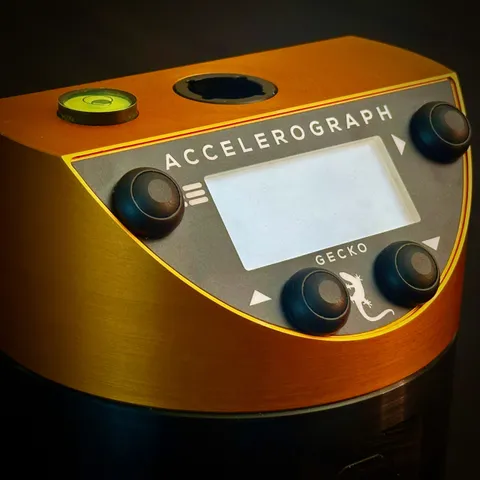

Strong Motion Accelerograph
