Gecko Blast Monitor
The Gecko Blast is an ESS-made compact triaxial velocity sensor and data logger for continuous vibration and blast monitoring, recording ground motion directly to an internal SD card.
- Output
- Peak amplitude to ~700 mm/s
- Frequency band
- Up to 1600 Hz
- Sensor
- 3x internal 4.5Hz geophones (triaxial: E-W, N-S, Up-Down)
Overview
In detail
How it works
Three internal 4.5Hz geophones measure East-West, North-South and Up-Down ground velocity, recording peak amplitudes of almost 700mm/s at frequencies up to 1600Hz. Data is written continuously to a removable SD card and can be reviewed and analysed on any PC; the standard LCD and keypad allow full configuration in the field without a laptop.
Deployment

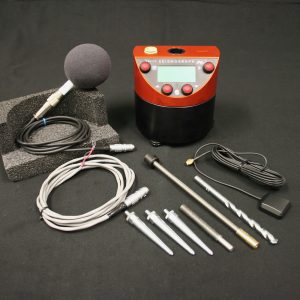

The unit bolts directly to rock or concrete through a hole in its body, or its levelling feet can be swapped for spikes to push it into soil. It records continuously for days, weeks or months, drawing around 1W, so a car-battery-sized lead-acid battery gives roughly a month of backup power.
Connectivity

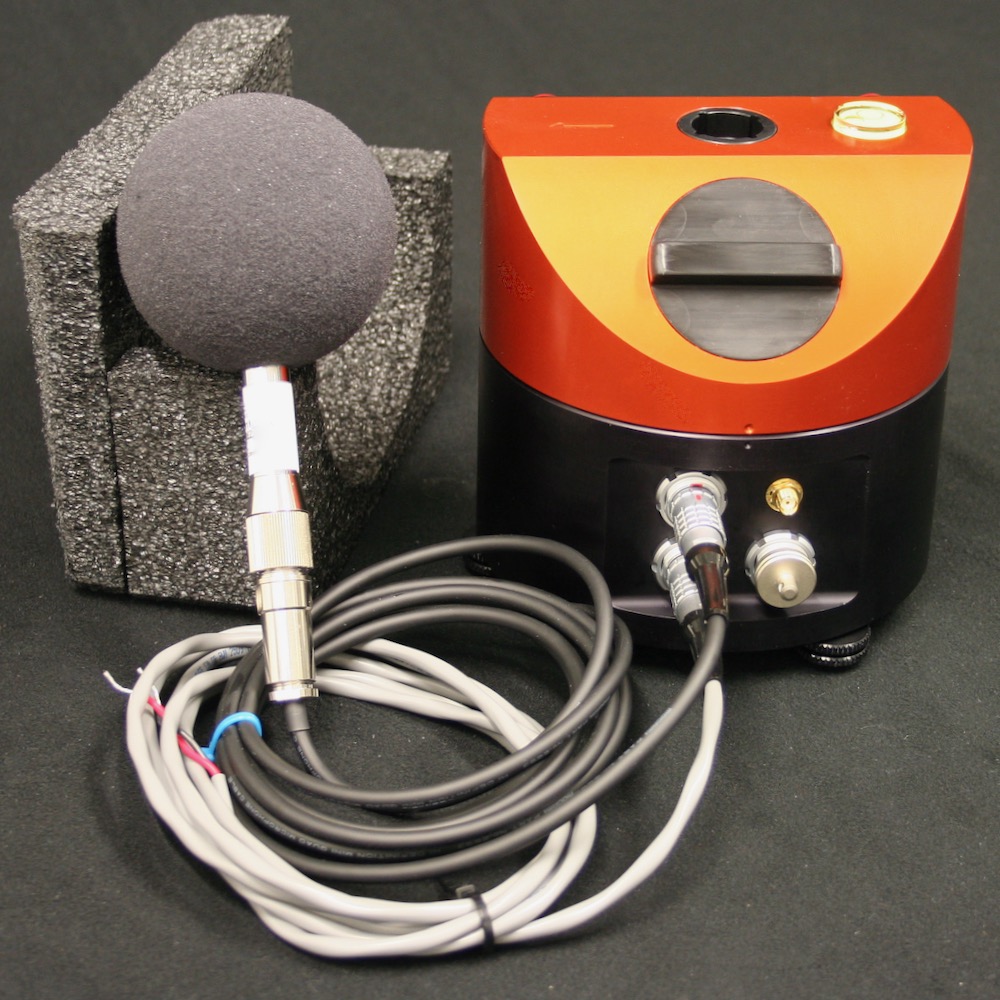

Alarm outputs can trigger an optional local beacon or transmit data in real time to a remote computer over Ethernet, WiFi or a cellular modem. An optional single-channel sensor input accepts a microphone for compliance-monitoring applications.
Reach out and say hi
Specifications
Technical specifications
- Output
- Peak amplitude to ~700 mm/s
- Frequency band
- Up to 1600 Hz
- Sensor
- 3x internal 4.5Hz geophones (triaxial: E-W, N-S, Up-Down)
- Power draw
- ~1W; ~1 month backup from a car-battery-sized lead-acid cell
- Connectivity
- Ethernet, WiFi or cellular modem; optional local alarm beacon
- Storage
- Removable SD card
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the Gecko Blast Monitor — no login, no paywall.
