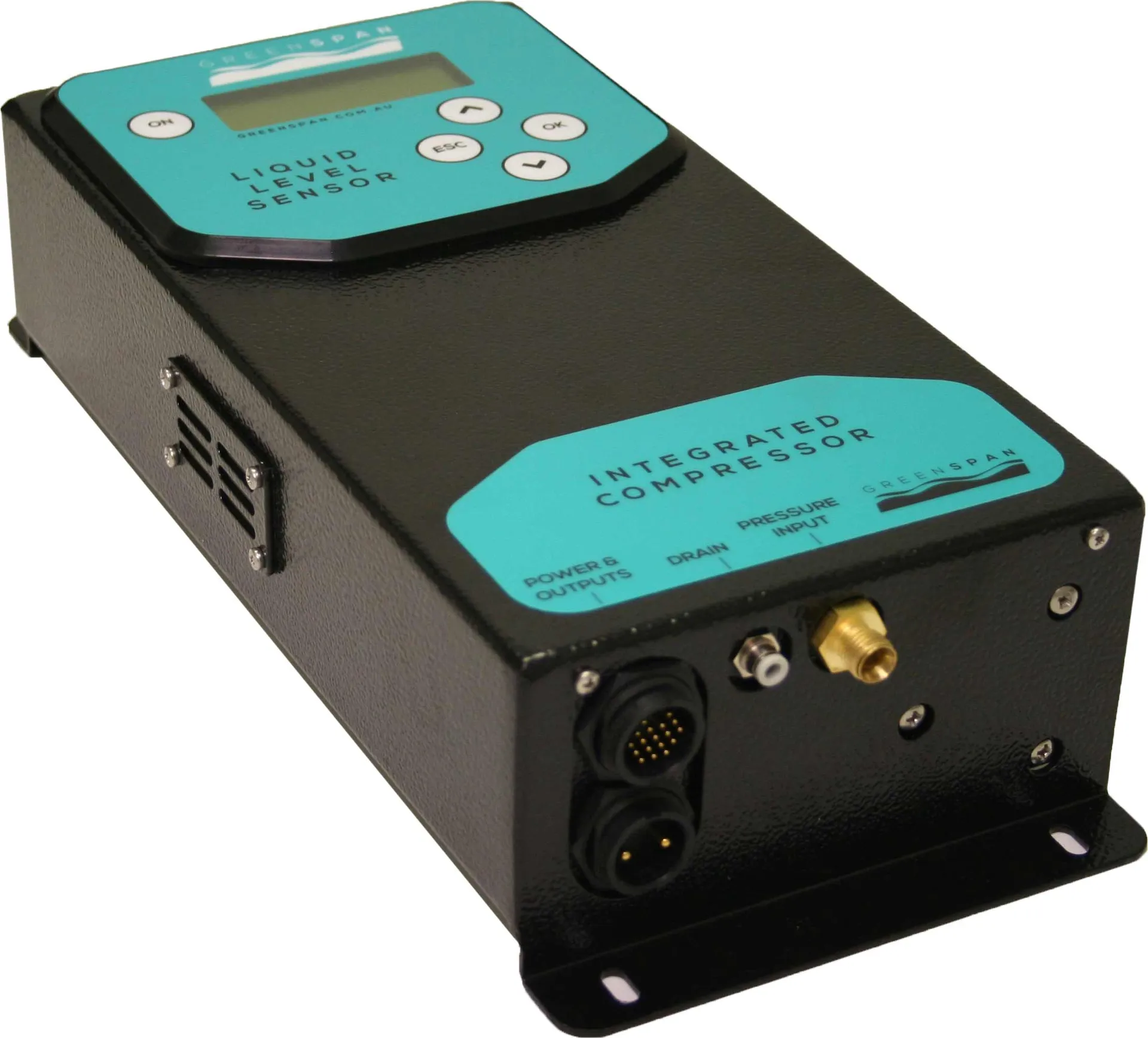

PR-7200 Water Level Bubbler
The PR-7200 is a self-contained water level bubbler that combines a Teflon-lubricated piston air compressor with a PR-7100 liquid level sensor to form a fully self-contained hydrostatic pressure sensor. Designed and manufactured in Australia, it measures water level up to 70 m without the need for a gas bottle or regulator.
- Range
- 10, 20, 35 or 70 m freshwater (15, 30, 50, 100 psi)
- Output
- 4-20 mA analogue; SDI-12 digital; RS-232; simultaneous digital/analogue
- Ingress
- IP67
Overview
In detail
How it works
The PR-7200 combines an air compressor with a PR-7100 liquid level sensor to form a fully self-contained hydrostatic pressure (bubbler) sensor. A Teflon-lubricated precision piston air compressor purges the bubble tube whenever a reading is required, which also avoids silt build-up in the tube, and the pump is capable of measuring up to 70 m of water head - more than twice the range of traditional bubbler systems.
Features
The PR-7200 carries over the features of the previous 6100 and 6150 models, including volumetric calculations for tank-based applications, analogue and digital outputs, an integrated LCD for setup, and an optional 8-pin screw terminal connector. It is backed by a three-year warranty and is designed, manufactured and supported in Australia.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 10, 20, 35 or 70 m freshwater (15, 30, 50, 100 psi)
- Accuracy
- Digital: ±0.05% FS linearity, ±0.01% FS repeatability, <0.05% FS/yr drift; Analogue: ±0.15% (0-50°C)
- Output
- 4-20 mA analogue; SDI-12 digital; RS-232; simultaneous digital/analogue
- Ingress
- IP67
- Supply voltage
- 12 VDC
- Operating temperature
- -10°C to +60°C
- Resolution
- Analogue: 12-bit; Digital: 16-bit
- Response time
- 30 s default measurement sequence
- Weight
- 4.2 kg (device only); 5.3 kg (shipping)
